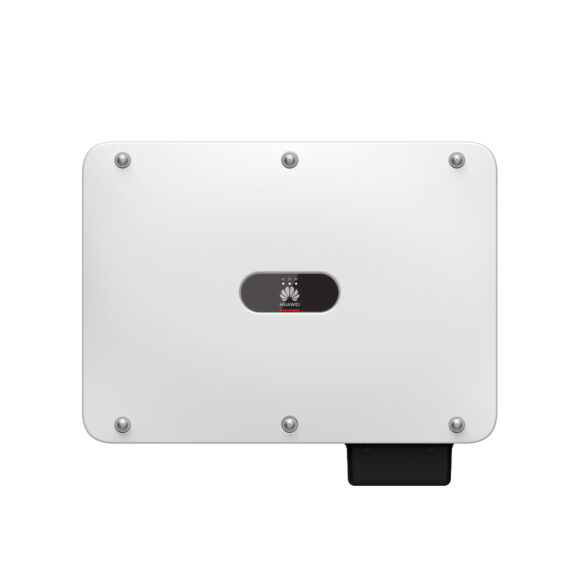

The SUN2000-30/36/40KTL-M3 is a compact commercial smart PV controller for rooftops and small ground arrays. It delivers 30 kW, 36 kW or 40 kW rated AC power. The unit uses four independent MPPTs and eight input strings to maximize yield in mixed orientations. It reaches up to 98.7% peak efficiency and 98.4% European efficiency. The design includes Type-II surge arresters on AC and DC, AI-assisted arc-fault protection, residual current monitoring, integrated PID recovery and DC/AC surge protection for module and system safety. It supports Amphenol Helios H4 DC connectors, optional Smart Dongles for WLAN/4G monitoring, and Huawei optimizers. The enclosure is IP66 rated and the unit operates −25 °C to +60 °C with natural convection cooling. Physical size and weight: 640×530×270 mm, ~43 kg.

SUN2000-30KTL-M3

Notes

1. Lower prices reflect limited-warranty listings or bulk/wholesale deals. Higher prices include authorized dealer warranty and local stock.

2. Installation, commissioning, AC/DC protection, meters and optimizers are extra.

3. I used the uploaded datasheet for specs. Price ranges come from current Pakistan listings and international offers.
