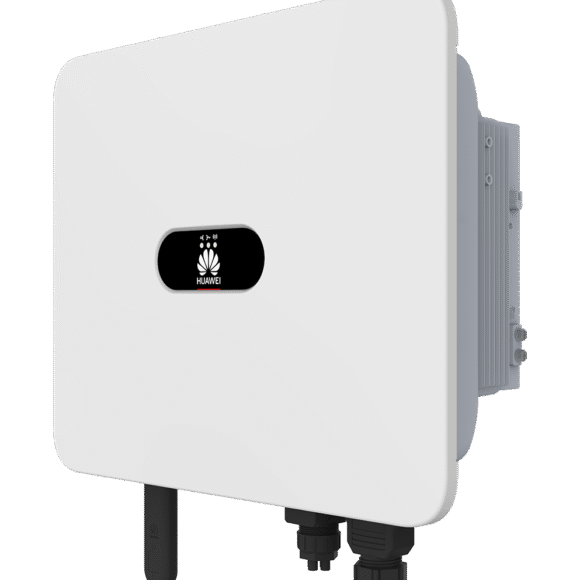

The SUN2000 MB0 series from Huawei is a high-power Smart Energy Controller family (12 kW through 25 kW) designed for larger residential or light-commercial PV systems that want integrated PV+storage capability and advanced safety features. Each MB0 unit features two independent MPPT trackers, a very wide DC operating window (start ≈200 V, max input 1,100 V), and high conversion efficiency (max ≈98.4%, European weighted up to ≈98.2%) for strong energy harvest. The controllers include two Smart String ESS battery terminals (compatible with Huawei LUNA2000-S0 and S1 variants), with high charging capability (up to 21–25 kW depending on model) and rated discharge power matched to each model — enabling fast charging and meaningful backed-up loads.

Safety and grid-compatibility are core to the MB0 design: integrated Arc Fault Circuit Interruption (AFCI), residual current monitoring, DC/AC Type II surge protection, DC reverse-polarity protection, insulation detection and anti-islanding. The enclosures are IP66-rated with smart air cooling and an operating range from −25 °C to +60 °C, allowing flexible outdoor installations. Communications are flexible (integrated WLAN + FusionSolar app; RS485; optional Smart Dongles for 4G/Ethernet), and multiple units can be paralleled with Smart String ESS for larger systems. Dimensions, weight (~21 kg) and key operating ranges are optimized for rooftop and small ground-mounted systems.

Key technical highlights (quick)

• Power classes: 12 / 15 / 17 / 20 / 25 kW (model dependent).

• 2 MPPT trackers; max DC input voltage 1,100 V; MPPT operating range ~200–1,000 V.

• Battery terminals: 2 (compatible with LUNA2000 S0 / S1 family).

• Max charging power: up to 21–25 kW (depends on single/two-string configuration & model).

• Protections: AFCI (arc fault), RCM/earth monitoring, SPD Type II, DC reverse polarity, insulation detection.

• Ingress protection IP66, smart air cooling, LED indicators + FusionSolar app.
