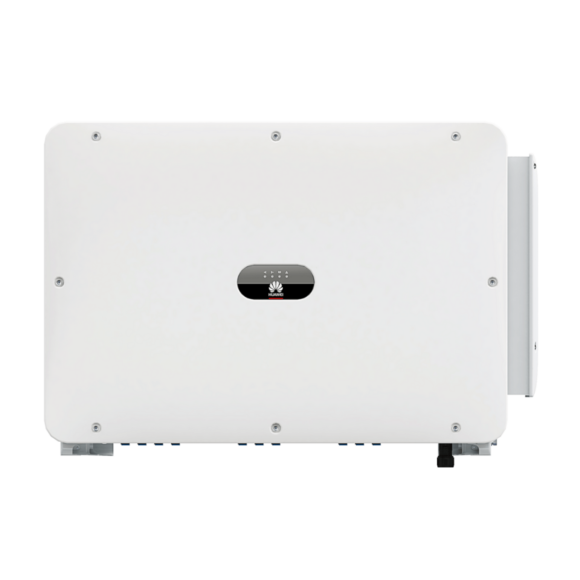

Huawei SUN2000-115KTL-M2 — 115 kW three-phase Smart PV Controller / string inverter with 10 MPPTs, IP66 protection, smart string-level management and up to 98.8% peak conversion efficiency.
Availability: In Stock
he SUN2000-115KTL-M2 is a heavy-duty commercial/utility string inverter designed for medium and large rooftop or ground-mounted PV plants. It delivers 115 kW nominal AC power (up to 125 kVA apparent), supports 10 independent MPPTs and up to 1,100 V DC input, and is built for harsh outdoor environments (IP66). The unit emphasizes high energy yield (98.6–98.8% peak efficiency), safety (arc-fault protection, residual current monitoring, DC/AC surge arresters) and smart O&M through FusionSolar monitoring and string-level diagnostics.
FusionSolar-CI-SUN2000-115KTL-M2
Key technical highlights (from the datasheet)
• Nominal AC power: 115,000 W; Max AC apparent power 125,000 VA.
FusionSolar-CI-SUN2000-115KTL-M2
• Max. efficiency: 98.8% (@480 V); European efficiency ~98.6%.
• MPPTs: 10 MPPTs, up to 2 strings per MPPT (max current per MPPT 30 A).
FusionSolar-CI-SUN2000-115KTL-M2
• Max DC input voltage: 1,100 V; MPPT operating range 200–1,000 V.
FusionSolar-CI-SUN2000-115KTL-M2
• AC output: 480 V / 400 V 3-phase (L1,L2,L3,N,PE); nominal output currents: 138.4 A @480 V, 166.0 A @400 V.
FusionSolar-CI-SUN2000-115KTL-M2
• Protection & safety: DC string disconnector, anti-islanding, DC reverse-polarity protection, DC & AC Type II surge arresters, residual current monitoring, string fault monitoring, AI-grade arc detection (vendor implementations vary).
• Communications/monitoring: FusionSolar app + WLAN adaptor, RS485, USB; MBUS supported (isolation transformer required).
FusionSolar-CI-SUN2000-115KTL-M2
• Environmental & mechanical: IP66, -25°C to +60°C operating, dimensions 1,035 × 700 × 365 mm, weight ≈93 kg, cooling: smart air cooling, altitude up to 4,000 m.
FusionSolar-CI-SUN2000-115KTL-M2
Why choose this model (benefits)
• High energy yield for commercial arrays thanks to many MPPTs and high peak efficiency.
• Easier O&M — string-level monitoring and smart I-V curve diagnosis reduce troubleshooting time.
• Robust safety package (surge arresters, residual current monitoring, AFCI/arc detection options) suitable for utility-grade deployments.
• Weather-proof housing (IP66) lets it be installed outdoors close to arrays, saving cable runs and balance-of-system costs.
FusionSolar-CI-SUN2000-115KTL-M2
Typical applications
Commercial rooftops, industrial facilities, C&I solar farms, small utility blocks, or any project requiring centralized 100–150 kW inverter capacity with granular string control.
